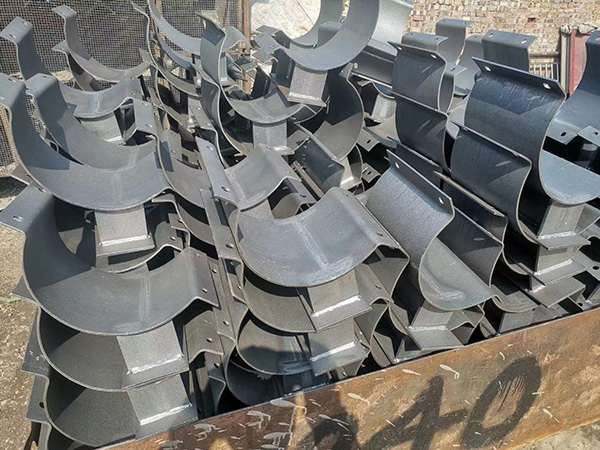

Thermal pipeline T-shaped pipe support

The Thermal Pipeline T-Shaped Pipe Support is a high-temperature resistant pipe anchoring system designed for heat transfer pipelines, steam systems, and thermal expansion applications. Its T-profile structure ensures stable multi-directional support while accommodating thermal movement, preventing stress buildup, and maintaining pipeline integrity in high-temperature environments.

Key Features

Thermal Expansion Accommodation – Allows controlled axial and lateral movement to prevent pipe stress

High-Temperature Resistance – Constructed from heat-resistant alloys (SS304/316, carbon steel with ceramic coating)

Insulation Compatibility – Supports pre-insulated pipes without compromising thermal efficiency

Vibration Dampening – Reduces thermal-induced vibrations in steam and hot fluid lines

Corrosion & Oxidation Protection – Specialized coatings for prolonged service life

Applications

Power Plant Steam Lines – Secures high-pressure steam distribution pipes

Petrochemical & Refinery Piping – Supports hot oil and process heating pipelines

District Heating Systems – Maintains alignment in thermal water networks

Industrial Boiler Systems – Anchors steam discharge and condensate return lines

Solar Thermal Energy Plants – Stabilizes heat transfer fluid (HTF) piping

Advantages

Prevents Thermal Stress Failure – Engineered for cyclic heating/cooling conditions

Energy-Efficient Design – Minimizes heat loss in insulated systems

Customizable Configurations – Adjustable for different pipe sizes and expansion rates

For high-temperature pipeline stability, our Thermal T-Shaped Support ensures safe and durable performance under extreme thermal conditions.

Contact us for thermal expansion calculations and material specifications.
