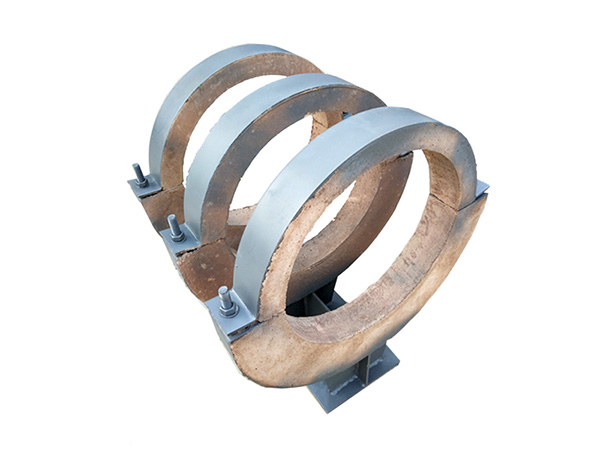

Vermiculite insulated pipe support

The Vermiculite Insulated Pipe Support is a high-temperature, fire-resistant pipe anchoring system designed for industrial applications requiring superior thermal protection and structural stability. Utilizing expanded vermiculite insulation, it effectively minimizes heat transfer, prevents cold bridging, and maintains pipe integrity in extreme temperature environments.

Key Features

Thermal & Fire Protection

Vermiculite Insulation Layer – Withstands temperatures up to 1100°C (2012°F)

Non-Combustible Construction – Meets ASTM E119/UL 263 fire resistance standards

Low Thermal Conductivity – Reduces heat loss and prevents energy waste

Structural Performance

Heavy-Duty Load Capacity – Supports high-weight pipes under thermal stress

Corrosion-Resistant Hardware – Stainless steel (304/316) or galvanized steel components

Vibration Dampening – Minimizes stress on piping systems

Design Advantages

Pre-Insulated & Modular – Easy to install and maintain

Adjustable Clamping Force – Accommodates varying pipe diameters (DN50–DN1200)

Thermal Break Technology – Prevents heat transfer to support structures

Applications

Power Plants – Steam lines, boiler feed pipes, and turbine bypass systems

Petrochemical & Refineries – Flare lines, heater ducts, and high-temperature process piping

Industrial Furnaces – Exhaust and burner piping

District Heating Systems – Insulated steam and hot water distribution

Fire Protection Systems – Critical pipe routing in fire-rated zones

Technical Specifications

Temperature Range: -50°C to +1100°C

Pressure Rating: Up to PN40 (custom high-pressure options available)

Insulation Thickness: 50–200mm (adjustable)

Optional Features

Ceramic Fiber Reinforcement – For ultra-high-temperature applications (>1100°C)

Seismic & Vibration Adaptations – Reinforced for high-stress environments

Hygienic Finishes – Electropolished stainless steel for sanitary applications

Standards Compliance

ASME B31.1/B31.3 (Process Piping)

ISO 13707 (Petroleum & Natural Gas Industries)

EN 13480 (Metallic Industrial Piping)

Request:

Fire-test certifications

Thermal performance data

Custom load-bearing solutions

Ensure safe, energy-efficient, and long-lasting pipe support in extreme heat conditions.

Contact us for project-specific engineering solutions and quotations.
